Product Description

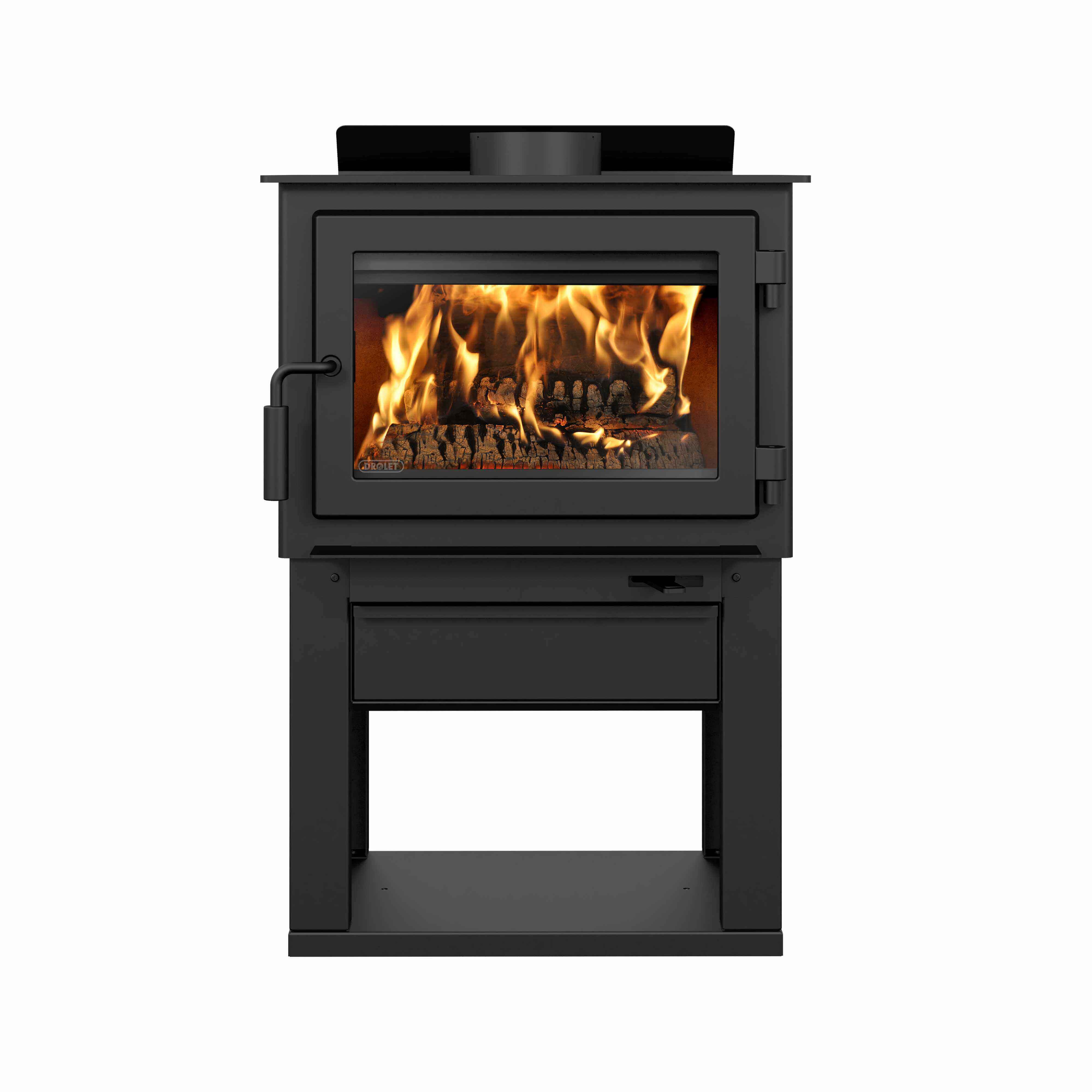

Please see below for an OEM parts list for the Drolet Deco II (DB03205) Wood Stove. Not all parts are available – only those listed in the drop down menu are available.
| # | Part (sold individually) | |||
|---|---|---|---|---|
| 1 | 21586 18 7/8″ x 9 1/2″ x 1 1/4″ VERMICULITE BAFFLE 1 / appliance (sold individually) | |||
| 2 | PL70516 SECONDARY AIR TUBE 4 / appliance (sold individually) | |||
| 3 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL (100 CFM) 1 / appliance (sold individually) | |||
| 4 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | |||
| 5 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | |||
| 6 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | |||
| 7 | 60013 POWER CORD 96″ x 18-3 2 / appliance (sold individually) | |||
| 8 | AC01336 5″Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | |||
| 9 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | |||
| 10 | 29015 4″ x 9″ x 1 1/4″ REFRACTORY BRICK 12 / appliance (sold individually) | |||
| 11 | 29010 4 1/2″ x 9″ x 1 1/4″ REFRACTORY BRICK 4 / appliance (sold individually) | |||
| 12 | PL36274 3 5/8″ x 5 3/4″ x 1 1/4″ REFRACTORY BRICK 1 / appliance (sold individually) | |||
| 13 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | |||
| 14 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | |||
| 15 | PL05530-02 THERMODISC BOX (COVER) 1 / appliance (sold individually) | |||
| 16 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | |||
| 17 | PL70713 AIR DEFLECTOR 1 / appliance (sold individually) | |||
| 18 | 30154 BLACK SCREW #10 x 5/8″ QUADREX #2 TYPE A 14 / appliance (sold individually) | |||
| 19 | SE46175 DB03205 MANUAL KIT 1 / appliance (sold individually) | |||
| 20 | 30101 SPRING TENSION PIN 5/32″Ø x 1 1/2″L 1 / appliance (sold individually) | |||
| 21 | SE70890 16 3/4”W x 10 7/8”H DROLET DECO II GLASS 1 / appliance (sold individually) | |||
| 22 | AC06400 3/4″ x 6′ FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | |||
| 23 | PL70889 RIGHT GLASS FRAME 2 / appliance (sold individually) | |||
| 24 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | |||
| 25 | PL70902 ASH SHELF 1 / appliance (sold individually) | |||
| 26 | AC05959 METALLIC BLACK STOVE PAINT – 342 g (12oz) AEROSOL 1 / appliance (sold individually) | |||
| 27 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4″ 4 / appliance (sold individually) | |||
| 28 | 30206 ZINC WASHER 5/16″IØ x 3/4″OØ 1 / appliance (sold individually) | |||
| 29 | PL70533 PRIMARY AIR CONTROLE PLATE 1 / appliance (sold individually) | |||
| 30 | 30187 STAINLESS WASHER IØ 17/64″ x 1/2″ OØ 4 / appliance (sold individually) | |||
| 31 | 30506 SCREW PAN TORX TYPE F 1/4-20 x 1″ BLACK 1 / appliance (sold individually) | |||
| 32 | SE70893 AIR INTAKE BOX ASSEMBLY 1 / appliance (sold individually) | |||
| 33 | PL70966 AIR CONTROL HOUSING PLATE 1 / appliance (sold individually) | |||
| 34 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | |||
| 35 | SE24343 DECO II DOOR ASSEMBLY 1 / appliance (sold individually) | |||
| 36 | AC06500 SILICONE & 5/8″ x 8′ BLACK DOOR GASKET KIT 1 / appliance (sold individually) | |||
| 37 | SE70698 REPLACEMENT HANDLE WITH LATCH 1 / appliance (sold individually) | |||
| 38 | 30742 DRILLED BLACK WOODEN DOOR HANDLE 1 / appliance (sold individually) | |||
| 39 | 30025 BLACK SCREW 1/4-20 x 1/2″ PAN-HEAD QUADREX 3 / appliance (sold individually) | |||
| 40 | SE74167 DOOR HINGE REPLACEMENT KIT 1 / appliance (sold individually) | |||
| 41 | AC01299 RIGID FIRESCREEN 1 / appliance (sold individually) | |||
| 42 | 30898 ROUND WOODEN BLACK HANDLE 2 / appliance (sold individually) | |||
| 43 | SE70906 ASH DRAWER ASSEMBLY 1 / appliance (sold individually) | |||
| 44 | SE70535 REAR HEAT SHIELD ASSEMBLY 1.7 SERIES 1 / appliance (sold individually) |
