Product Description

ICC Insulated Wall Thimble

The ICC insulated wall thimble allows a wood stove to be vented safely through a wall that has combustible materials in it.  IF the wall is pure masonry, then only a rigid piece of stainless steel liner is required.  IF the wall has any type of combustibles within proximity of the vent pipe, then the local building authority will probably want to see an Insulated Thimble installed.  One side of the thimble is black (part that goes in the room) whereas the other will connect to a stainless steel liner system OR the clay tile.

Read Detailed Insulated Wall Thimble Instructions Here

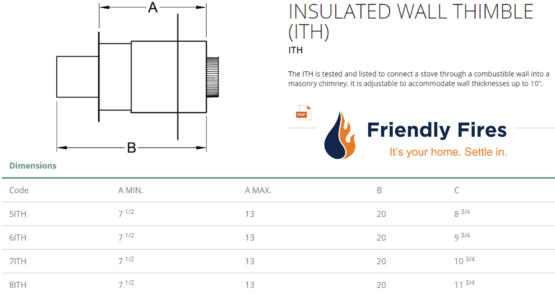

ICC Rigid SS Liner – Insulated Thimble Part Numbers:

• 6″: 6ITH
• 7″: 7ITH
• 8″: 8ITH

Allowable Flue Gas Temperatures

• Max Continuous 650°C (1200°F)
• Brief Forced Firing 925°C (1700°F)
• Tested To 1150°C (2100°F)

EXCELiner is certified as a chimney liner for use on appliances that burn: Wood; Oil; Natural or LP Gas.

We also carry ICC Wall Thimble Extensions for when your wall is very thick.

These genuine ICC Wall Thimbles are in stock ready to ship
