Product Description

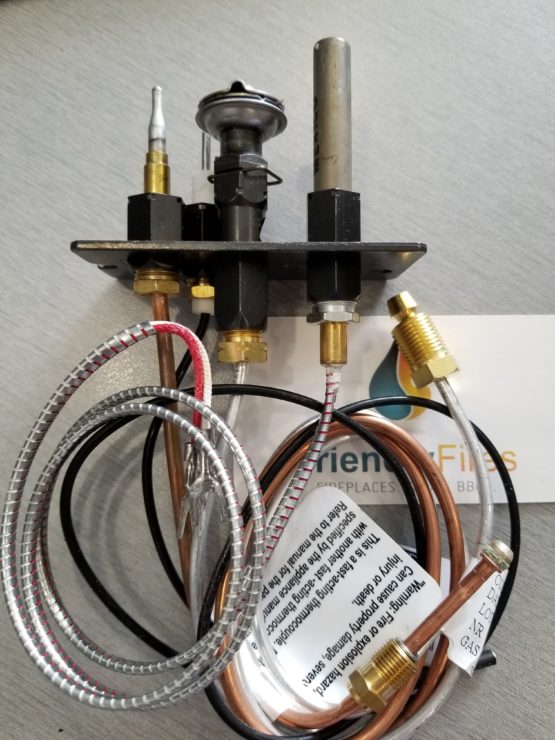

This is an OEM Kingsman & Marquis Pilot Assembly that fits many models of Kingsman & Marquis gas fireplaces (see applicable models below). This is a genuine replacement part that will ship new in its original packaging, it is not an aftermarket copy.

Noteworthy: There are different pilot assemblies for natural gas (NG) and propane (LP). Please ensure to select the correct fuel source for your fireplace.

Kingsman Marquis Part Numbers:

• 1001-P714S1 (natural gas fuel)
• 1001-P713S1 (propane fuel)

What’s Included?:

• Thermocouple
• Thermopile
• Spark Electrode
• Pilot Tube
• Orifice (different between NG and LP)

Applicable Models (both gas and propane):

Kingsman Fireplaces:

• FDV200
• FDV300
• FDV350
• FDV451
• FDV500 (Serial # 3089 and above)
• FV5000 (Serial # 4468 – 4740)
• HBZDV3624
• HBZDV3628
• HBZDV3632
• HBZDV4224
• HBZDV4228
• HBZDV4232
• HBZDV4740
• IDV26
• IDV33
• IDV36
• IDV43
• MCVP42
• MCVST42
• MDV30 (Serial # 31088 and above)
• MDV31 (Serial # 31088 and above)
• MDV38 (Serial # 38321 and above)
• MDV39
• VFI25 (Serial # 25727 – 25901)
• VFI30 (Serial # 13436 – 13930)
• ZCV39
• ZCV42
• ZCV3622
• ZCVRB3622
• ZDV3320 (Serial # 6833 and above)(Serial # 6708 and above)
• ZDV3620 (Serial # 19454 and above)
• ZDV3622
• ZDV3624 (Serial # 8953 and above for LP)(Serial # 9155 and above for NG)
• ZDV3624B (Serial # 360768 and above for LP)(Serial # 360767 and above for NG)
• ZDV3628 (Serial # 3698 and above for LP)(Serial # 3699 and above for NG)
• ZDV3632 (Serial # 420372 and above for LP)(Serial # 420373 and above for NG)
• ZDV4224 (Serial # 8971 and above for LP)(Serial # 9250 and above for NG)
• ZDV4228 (Serial # 3710 and above for LP)(Serial # 3711 and above for NG)
• ZDV4232 (Serial # 420324 and above for LP)(Serial # 420325 and above for NG)
• ZDV6000 (Serial # 6723 and above for LP)(Serial # 6820 and above for NG)
• ZDVRB3622
• ZRB46
• ZV3600 (Serial # 36184 – 36350)
• ZV4200 (Serial # 36184 – 36350)
• ZV6500

Marquis Fireplaces:

• Atrium
• Bentley
• Bentley St
• Capella 26
• Capella 33
• Capella 36
• Capella IDV43
• Cove
• Gemini
• Infinite
• Serenity
• Skyline MQRB3632
• Skyline MQRB4236
• Skyline ZCVRB3622
• ZDVRB3622
• ZRB46
• Solace
• Solara
• Solara II
• Vantage

If your part is not listed on our website, please contact us and we would be happy to help try and source it!

This genuine Kingsman & Marquis Pilot Assembly is in stock ready to ship
