Sale!

Pacific Energy Glass Replacement – Super Series (SSER.50345/DR31.WGLKIT/WODC.GLKIT)

USD $226.17USD $269.67

Clear

Shipping rate calculated in the Cart before payment.
For more information please click here.

SKU: DR31.WGLKIT Categories: , , Tag:

Product Description

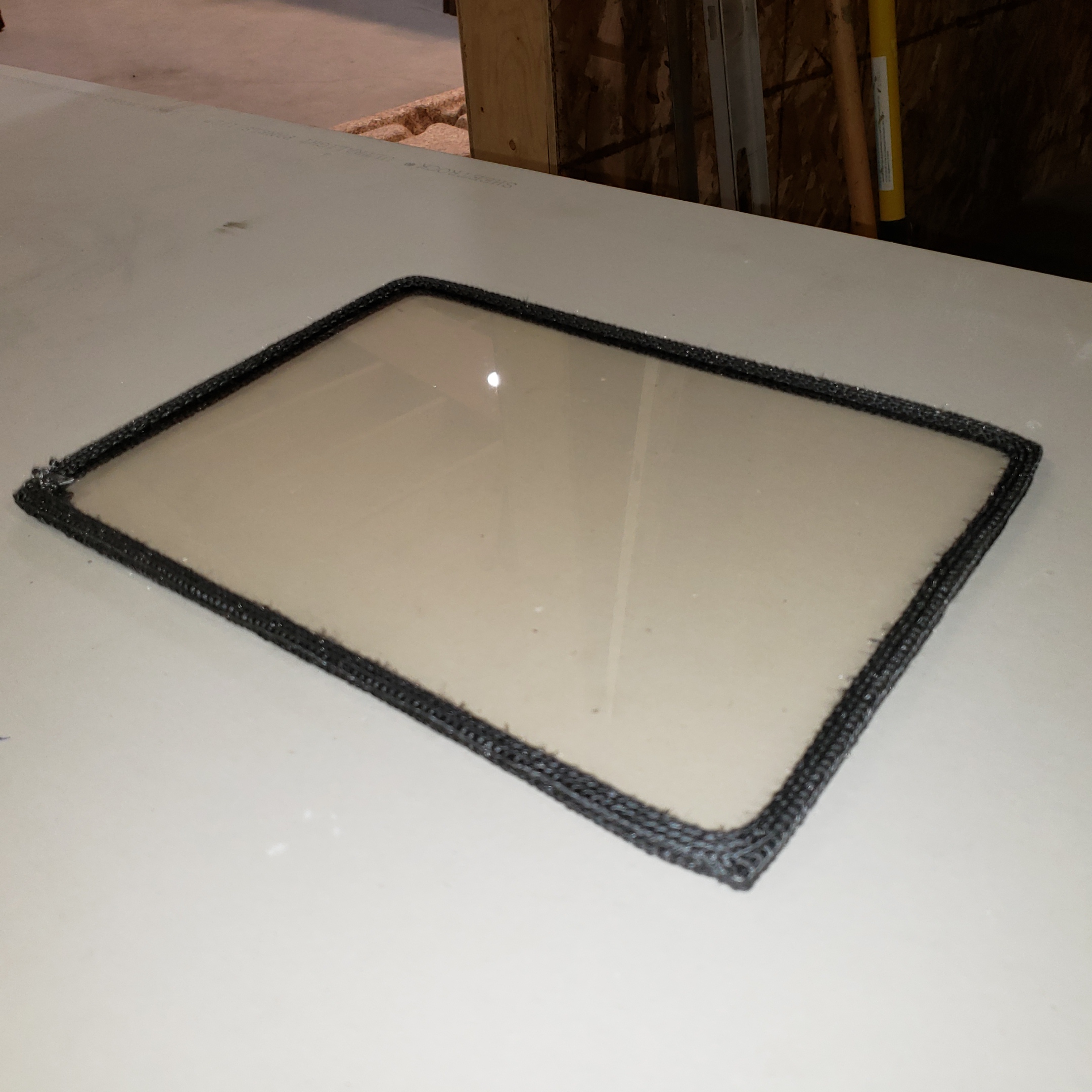

This is a genuine replacement part from Pacific Energy.  This replacement high temperature glass ships new in original Pacific Energy packaging.  This part is the ceramic glass replacement in the door of newer and older Pacific Energy Super Series wood stoves and wood inserts.  This PE glass replacement comes with the gasket already installed on the glass.  This part does not include glass clips or the door channel gasket.  Please note – Pacific Energy makes multiple sizes of wood stoves and wood inserts – so please cross reference your product with your manual to ensure you are ordering the correct one.

Pacific Energy Part Numbers:

  • 80000157 (replaces old part number DR31.WGLKIT) – fits more recent stoves & inserts 15 1/4″ x 8 3/4″ – see below
  • 80000668 (replaces old part number WODC.GLKIT) – (rare – slightly larger glass) fits recent stoves 15 5/8″ x 9 1/4″ – see below
  • 80000373 (replaces old part number SSER.50345) – fits older stoves 12 5/8″ x 9 1/8″ – see below

80000157 / DR31.WGLKIT Applicable Models:

This replacement glass fits:

This replacement glass fits: D Series  (D1 is separate, if you have D1 see the next glass below)

  • PE Super 27, Spectrum, and Spectrum Classic wood stoves built after 2001 with serial numbers 154,001 or higher.
  • PE Super Inserts with serial number 36,001 – 55,706
  • PE Fusion Freestanding Stoves with serial number 25,001 to present

Other Notes: You may require part number SSER.1425 – the glass clamp set if yours are not in good shape.

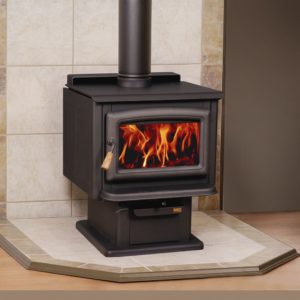

Newer stove for reference:

Pacific Energy Super 27 Replacement Glass | Friendly Fires

Newer stove with rounded door.


80000668 / WODC.WGLKIT Applicable Models:

This replacement glass fits: D1 Series – D1 units have 25% bigger doors & glass, and the air control is under the ash lip.
The WODC doors were built between 09/1999 ~ 04/2001. This glass is much more rare than the above glass.

To tell which door you have measure the glass diagonally, the 80000668 door measures 17″. The 80000157 door measures 16.5″.

  • PE Super 27, Spectrum, and Spectrum Classic wood stoves built after 2001 with serial numbers 154,001 or higher (upper range not known).
  • PE Super Inserts with serial number 36,001 – 55,706
  • PE Fusion Freestanding Stoves with serial number 25,001 to present

Other Notes: You may require part number SSER.1425 – the glass clamp set if yours are not in good shape.


80000373 / SSER.50345 Applicable Models:

This replacement high temperature glass measures 12 5/8″ x 9 1/8″.  This glass fits the Pacific Energy Super 27 Series ‘D.’ It will not fit newer Super 27 Series. Please check your serial number. This glass fits Pacific Energy Super 27, Spectrum & Spectrum Classic wood stoves and wood inserts:

  • Pacific Energy Freestanding wood stoves serial numbers: 55,000 to 154,000
  • Pacific Energy Wood Inserts serial numbers: 22,001 to 36,000

Other Notes: You may require part number SSER.142 – the glass clamp set.

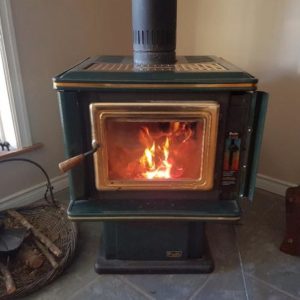

Older stove for reference:

Pacific Energy Super 27 Replacement Glass | Friendly Fires

Older stove with square door.

Installation tips: Be careful not to over tighten the screws.  If you over tighten the screws you could crack the glass.

Purpose: The glass allows for a large viewing area of the beautiful fire.  If the glass is cracked or broken it needs to be replaced for safety reasons.




Shipping Dimensions

Weight 5 lbs
Dimensions 20 × 14 × 8 in
Model

SSER.50345 : Older Stoves & Inserts, DR31.WGLKIT : Newer Stoves & Inserts, WODC.WGLKIT : Larger door Newer Stoves & Inserts

Replacement parts come with a 90 day warranty unless otherwise stated.
