Pacific Energy Ceramic Blanket & Gasket Kit – Summit Series A ~PRE 2018 (SUMM.506875/80000402)

USD $74.03

Shipping rate calculated in the Cart before payment.
For more information please click here.

SKU: SUMM.506875 (80000402) Categories: , , Tags: ,

Product Description

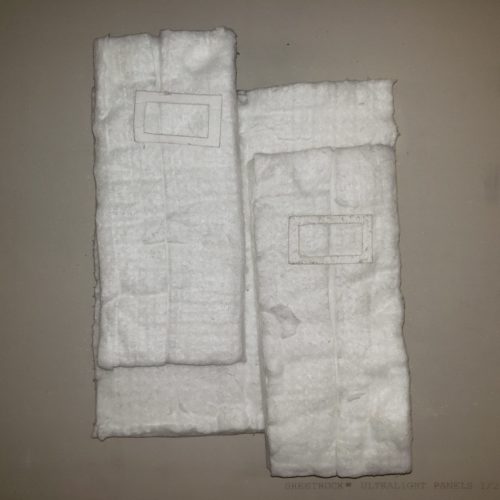

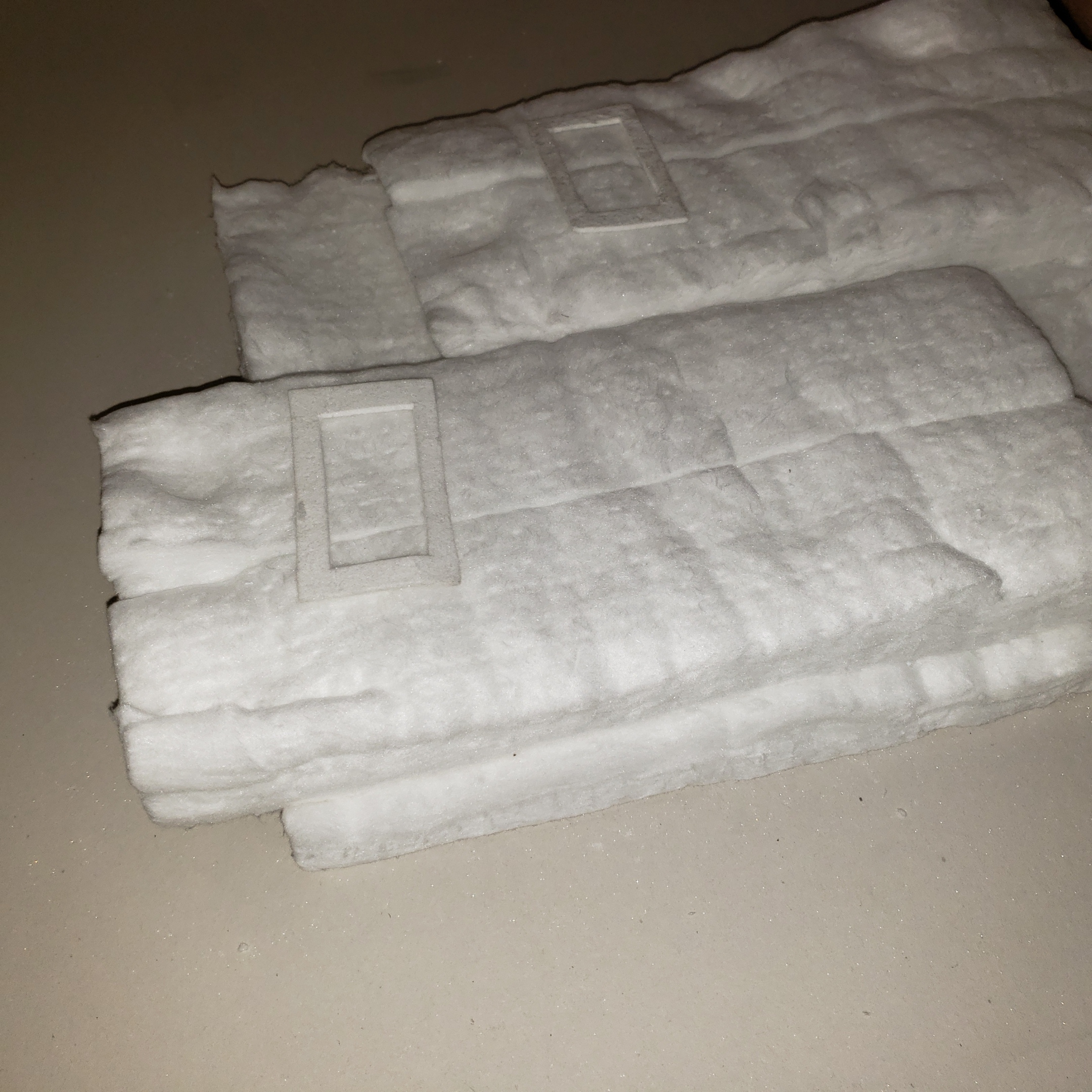

This is the official genuine Pacific Energy Ceramic Baffle and Gasket Kit.  It includes the top ceramic baffle blanket, the left and right ceramic insulation blankets and the baffle gasket.  If your Pacific Energy Summit was made after 2018, you may require a different baffle gasket to be added to this kit.

PE Part Number: SUMM.506875   /  80000402

Applicable Models: PE Summit Series A, PE Summit Classic Series A, PE Alderlea T6 Series A and PE Summit Inserts Series A (check to ensure your appliance is ‘Series A’ by looking at the rating plate on the back of your stove or insert).

Purpose: Baffles in wood burning appliances are designed to keep the heat inside the firebox to ensure a clean burn.  They also protect the top of the appliance from over heating.  They also ensure proper air flow inside the stove.  If they are damaged or deteriorating in any way, they should be replaced.

Installation tips: You will need to remove the baffle pin located at the back inside wall of the stove.  Then raise one side of the baffle up above the side rails and the air tube at the back.  Remember to put the baffle gasket on before putting in the baffle and try not to tear the baffle gasket when you lower the baffle on top of it.  The side pieces of insulation need to go in before the baffle is put on top.   It will take some time and patience

Other Notes:  Make sure you put in the baffle pin once everything is in place.  If the pin does not go in, there maybe something not lined up correctly.  It may make sense to purchase an additional PE Summit Baffle Gasket at the same time, as these typically prematurely fail first (before the blankets).


This genuine Pacific Energy replacement part is in stock ready to ship.


Pacific Energy replacement parts are pick-up in-store only.

Pacific Energy’s online policy does not allow us to ship Pacific Energy Replacement Parts outside of our local area.

If you are looking for a local dealer or technical advice please contact Pacific Energy directly: Contact Pacific Energy →

Shipping Dimensions

Weight 4 lbs
Dimensions 16 × 9 × 6 in

Replacement parts come with a 90 day warranty unless otherwise stated.

All Gas or Pellet components must be installed by a licensed technician.
All Gas or Pellet component warranty claims must include installation receipt to qualify for warranty.

Please contact Online Store Support with any warranty questions.
