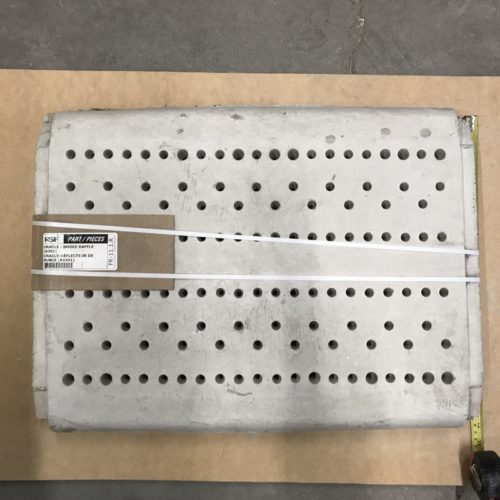

RSF Oracle & Focus ST Top Refractory Baffle (FR-11.1.R)

USD $300.99

Shipping rate calculated in the Cart before payment.
For more information please click here.

SKU: FR-11.1.R Categories: , ,

Product Description

This is an official genuine OEM RSF and RSF Energy Replacement Part.  The RSF Oracle & Focus ST are wood fireplaces and the Top Refractory Baffle will break and wear over time.

RSF Part Number: FR-11.1.R

Part Description: RSF Oracle & Focus ST Top Refractory Brick.

Applicable Models:

  • RSF Oracle
  • RSF Focus 320 ST

Purpose: Baffles in wood burning appliances are designed to keep the heat inside the firebox to ensure a clean burn.  They also protect the top of the appliance from over heating.  They also ensure proper air flow inside the fireplace.  If they are damaged or deteriorating in any way, they should be replaced.

Installation tips:  To remove the top refractory baffle, first remove the secondary air tube. Simply unscrew the secondary air tube on the left side, slide the tube toward the right until the left end drops out of its hole. Slide the tube back towards the left to get the right end out of its hole.

To remove the top refractory baffle, push up and slide it off the brackets. Replace both the baffle and the secondary air tube as you removed them and be sure to have the holes on the secondary air tube facing toward the front.  Do this in reverse order to get the baffle back into place.  It will take some time and patience

Other Notes: Highlighted in yellow in product image.



This genuine RSF Replacement Brick is in stock ready to ship.

Shipping Dimensions

Weight 75 lbs
Dimensions 28 × 24 × 7 in

Replacement parts come with a 90 day warranty unless otherwise stated.
