Product Description

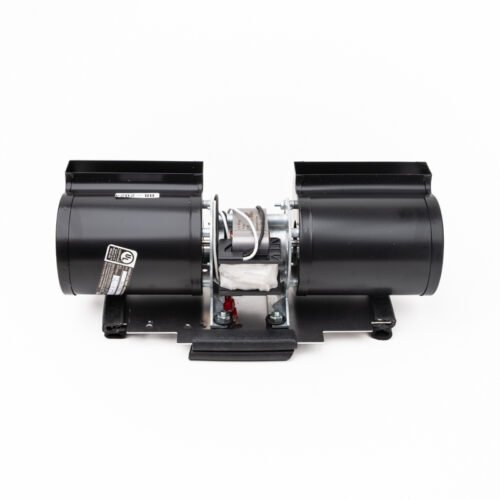

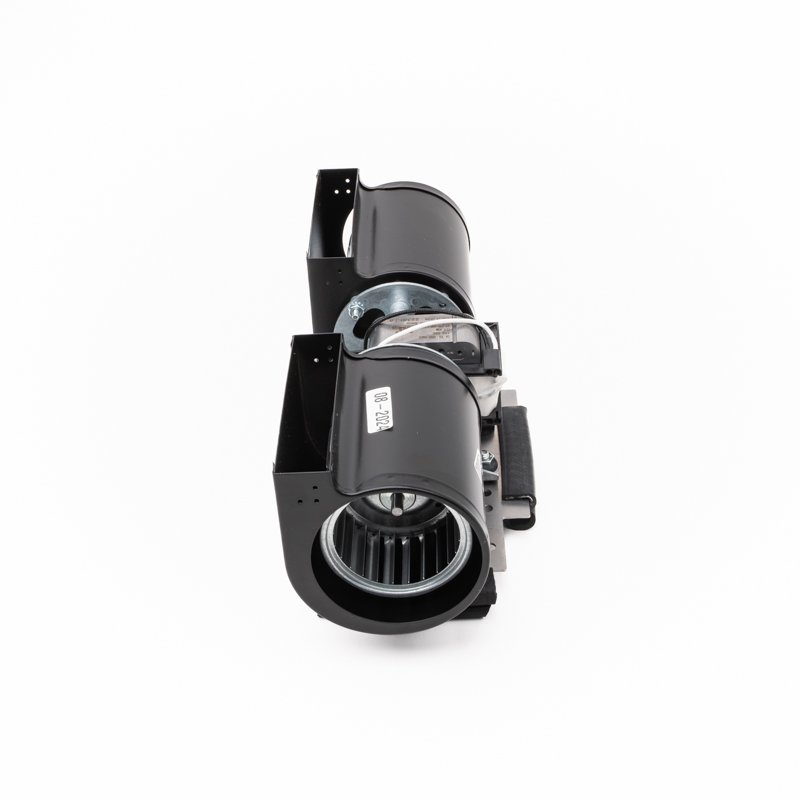

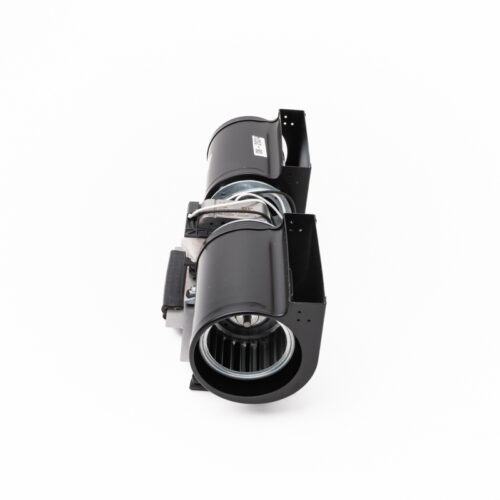

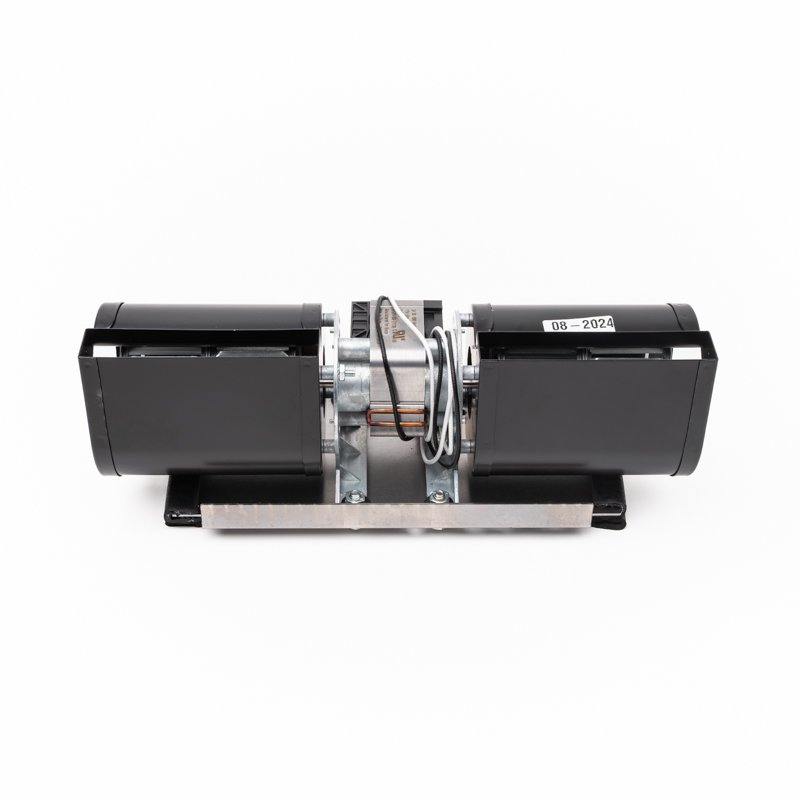

This if the official RSF Blower Fan Kit. This official RSF blower fits all RSF fireplaces, EXCEPT FOR THE TOPAZ AND CHAMELEON MODELS. It replaces all other RSF blowers as they have been discontinued.
**If you have a Topaz or Chameleon model this blower WILL NOT work. You can view this compatible blower instead.**
IMPORTANT INFORMATION: PLEASE READ BEFORE ORDERING:
This blower is a universal replacement for most RSF Fireplaces (all models except for the Topaz and Chameleon) MADE AFTER 1996. It is a different size and has a slightly altered design than the original blowers. It will likely look different, this new blower is compatible with all of their models made AFTER 1996. If your model was made BEFORE 1996, because of space limitations, you will need this blower instead. **

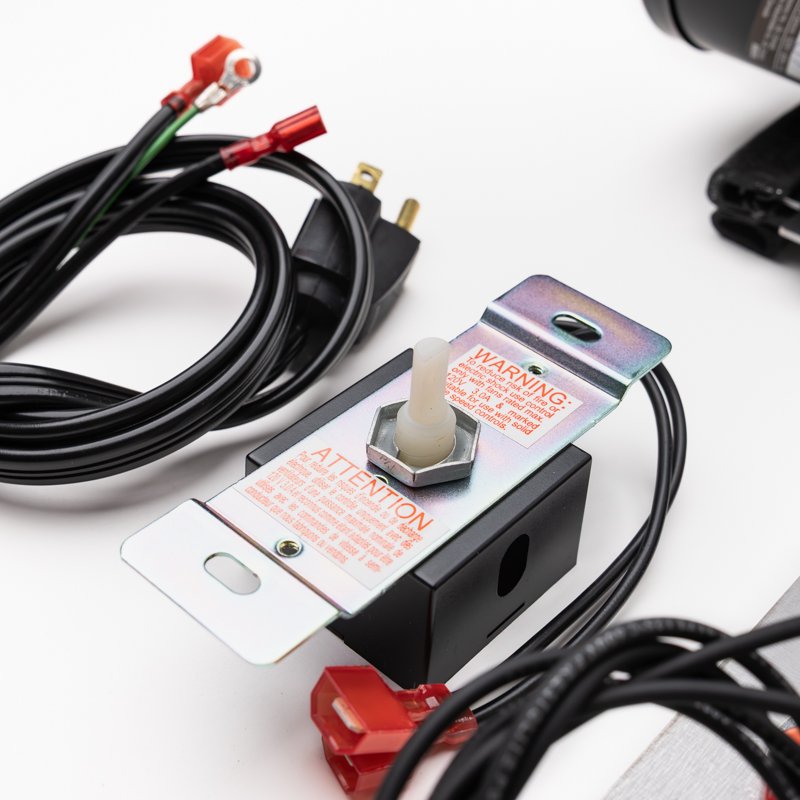

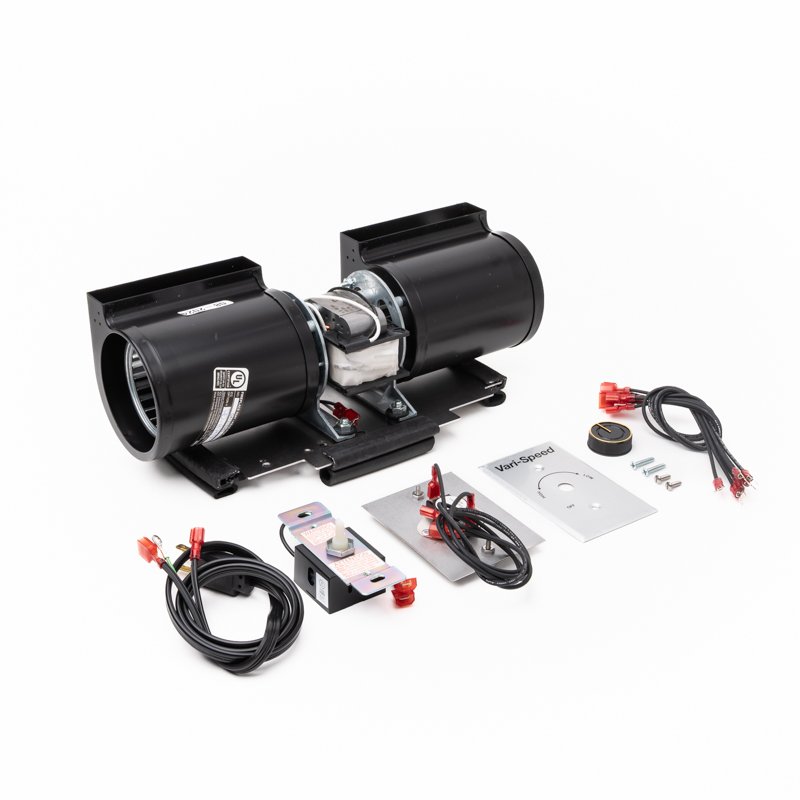

The FO-HB9 is only available as a complete kit that includes a variable speed switch and snap disc. All wiring connections are in quick-disconnect format for easy installation. Also included is a three-prong plug that can be used for plugging the blower directly into an outlet, if desired. Of course, fork connectors are also provided to connect to the terminal block. This versatility makes it ideal for new installations and for replacing existing blowers.

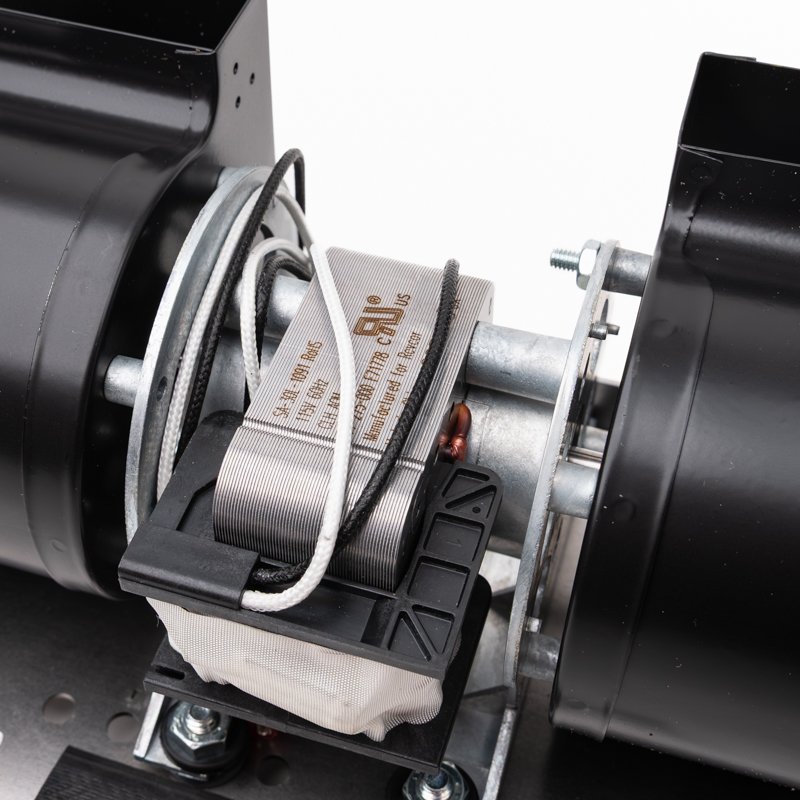

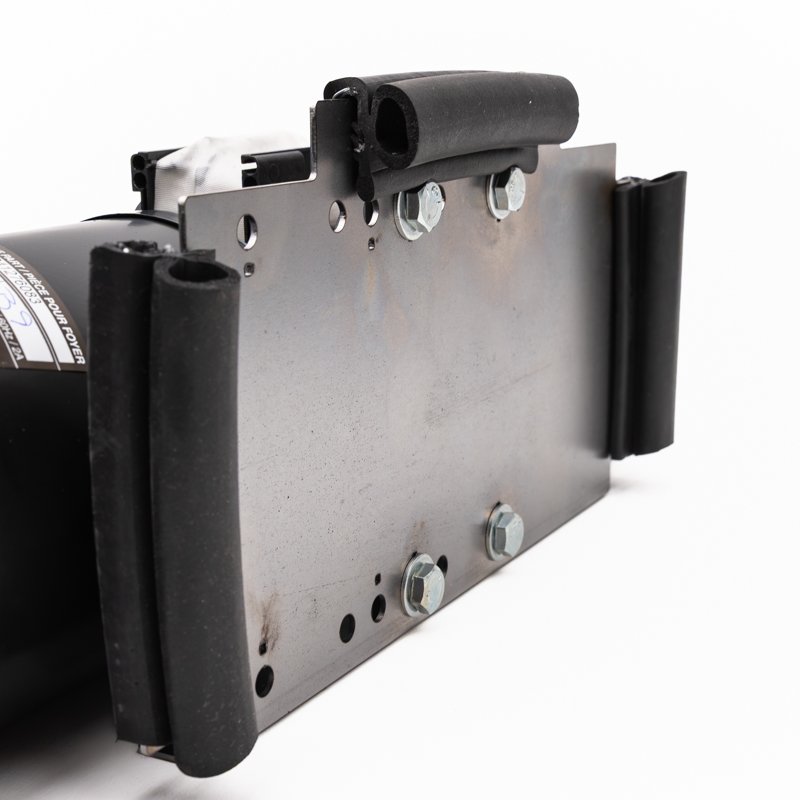

It uses a Class-H motor resistant to the high temperatures found in fireplaces and the universal mounting plate permits it to be installed in any applicable RSF fireplace, past or present.
Specifications
- Dimensions in Inches: W: 12.80 x H: 4.44 x D: 5.00 with Bracket
- Class-H Motor is equipped with Thermal Safety Switch
- Bearing Construction Type: Ball Bearings
- CFM: 170
- AMPS: 1.24
- HZ: 60
- Volts: 115
- RPM: 3000 (1/2400 with load)
- Rotation: CCW

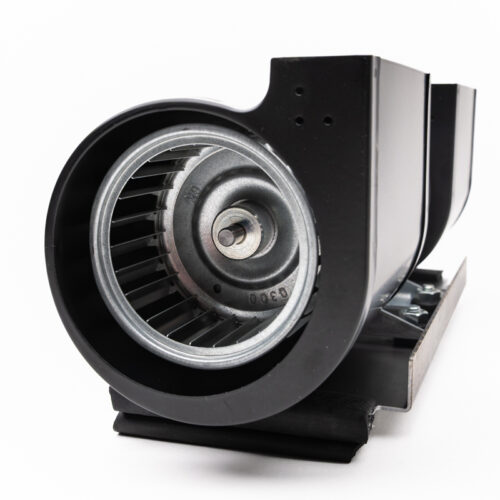

- Blower Wheel Dimensions: Width: 4in (101mm) Diameter: 3in (76mm)

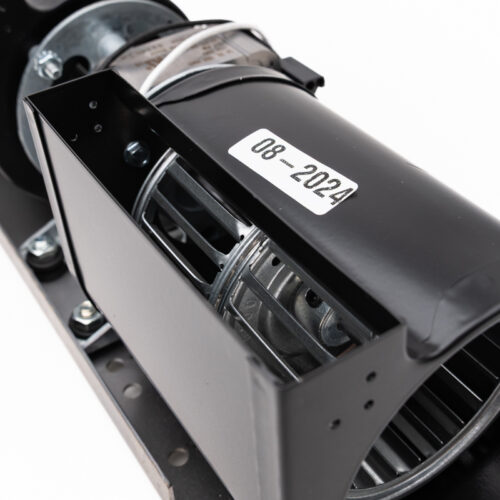

- Metal Impellers
FO-HB9 replaces RSF part numbers:
- FR-14.14.15
- FO-FDHB5-N
- FR-14.14.14
Applicable RSF Models:
- RSF Pearl Wood Fireplace
- RSF Delta
- RSF Delta 2
- RSF Opel
- RSF Opel 2
- RSF Opel 3
- RSF Opel 2000
- RSF Opel AP
- RSF Focus 320
- RSF Onyx
- RSF Onyx AP
- RSF Oracle
Purpose: The blower is designed to increase the efficiency of the wood burning fireplace. If the blower is not working, heat will be lost up the cavity of the chimney.
Installation Tips: The blower can be a little tricky to remove / install. You will probably need to remove/move the bottom louver of the fireplace to replace the blower.
Other Notes: This replacement part is the full kit. The FO-HB9 generates ten times more static pressure than the previous models. Customers will be blown away, quite literally, with the performance. It uses a Class-H motor resistant to the high temperatures found in fireplaces and the universal mounting plate permits it to be installed in any applicable RSF fireplace, past or present. Check with your distributor for pricing details, even though the benefits of the FO-HB9 outweigh previous RSF blowers, it also costs more than previous blower options.
This genuine RSF Blower Kit is in stock ready to ship.
